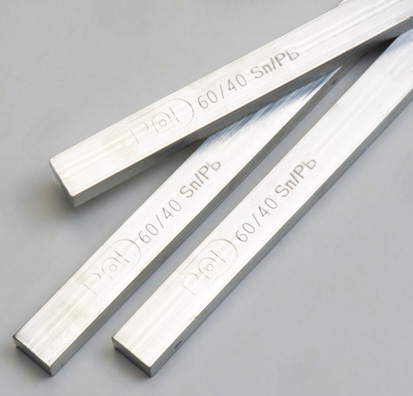

Sn60Pb40 Solder Sticks
PAI SnPb40 Sticks are being formulated with High Virgin Raw Metals Processed in state-of-the-art Vaccualloy Technology that brings world class Quality along. Here, Oxygen interaction with Alloy is Nil and thus, Dross formulation is reduced at PCB Assembly Process. Also an increase flow rate & reduced impurities found. PAI SnPb40 Alloy is compatible for a typical range of Flux Application Formulas used in Electronics Industry Today.
Storage & Handling
- Do not use Fire near storage area.
- Store in Dry, Cool and Non-Corrosive environment.
- Wear Personal Protective Equipments while Handling. Wear Personal Protective Equipments while Processing.
Alloy Composition
Sr. No. |
Metal |
PAI Sn60Pb40 Solder Sticks |
ISO9453 Specification |
J-STD-006 Specification |
1 |
Sn |
60.145% Max |
59.5% -61.50% |
59.5% -61.50% |
2 |
Pb |
Rem |
Rem |
Rem |
3 |
Sb |
0.00131% Max |
0.05% Max |
0.5% Max |
4 |
Cu |
0.00134% Max |
0.05% Max |
0.08% Max |
5 |
Au |
0.00078% Max |
0.05% Max |
NA |
6 |
Ag |
0.00073% Max |
NA |
0.10 Max% |
7 |
Al |
0.00026% Max |
0.001% Max |
0.005% Max |
8 |
As |
0.00108% Max |
0.03% Max |
0.03% Max |
9 |
Bi |
0.00196% Max |
0.05% Max |
0.25% Max |
10 |
Cd |
0.00136% Max |
0.002% Max |
0.001%Max |
11 |
In |
0.00324% Max |
NA |
NA |
12 |
Fe |
0.00931% Max |
0.02% Max |
0.02% Max |
13 |
Ni |
0.00228% Max |
NA |
0.01% Max |
14 |
Zn |
0.00068% Max |
0.001% Max |
0.003% Max |
15 |
S |
0.00045% Max |
NA |
NA |
Physical Characteristics of Application
Alloy |
Sn60/Pb40 |
Shape |
Rectangular Form |
Density |
8.4gm/cm³ at 200C |
Melting Point |
1830C |
Package Form |
25Kgs |
Application |
Wave Soldering / HASL Process |
Standards Considered |
JIS-Z-3282 |
Shelf Life |
10 Years |
Technical Specifications
Technical Factors Recommended |
Specifications |
Solder Pot Temperature |
250°C to 260°C |
Dwell Time |
2 Sec to 4 Sec |
Immersion |
0.5% to 0.70% of PWBs Thickness that being Processed |
Dross Recovery |
Once in Every 8 Hours |
Impurities Level Check |
In-House Specifications |
Other Factors |
Refer Liquid Flux Manufacturer Specifications for desired Yields |
