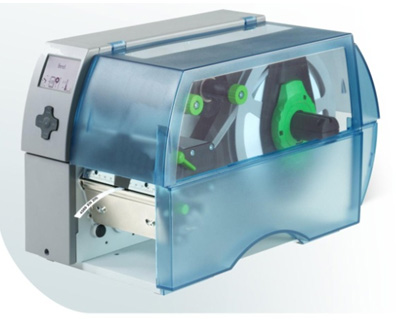

MK10 - Thermal Transfer Printer
- Compact heavy duty printer for high demand production for wire, cable and component marking.
- Feeds, prints and cuts bulk Partex profiles.
- MK10 is a very cost effective identification system for use in panel building and electrical installations.
- USB connection, controlled by Partex software WinSign.
General Information
Design
MK10 is a modern thermal transfer printer for Partex PO-profiles. The printer cover all needs of wire and cable marking and has a high production speed (up to 125 mm/sec). MK10 is connected to your computer with a USB cable and is controlled by Partex software WinSign. It prints on profile direct from reel and semi detaches the marker at wished lengths with the built in cutting unit. In addition to PO-profile the MK10 prints on heat shrink tubing and Partex component marker PPA profile.
FACTS
- Thermal transfer printing : 300 dpi print resolution.
- Printing speed : 125 mm/s.
- PC connection : USB 2.0 connection and Partex software WinSign.
- Power supply : 100 - 240V (50-60Hz).
- Power consumption : max 300 W. CE-certified.
- Measurements : (L x W x H): 446 x 242 x 275mm.
- Weight : 9 Kg.
- Operation data
Operating temperature : +10°C to +35°C
Humidity : 30 - 85 % not condensing To obtain the best printing result, the temperature of the profile shouldn’t be lower then +25°C.
