ESD & Clean Room Products

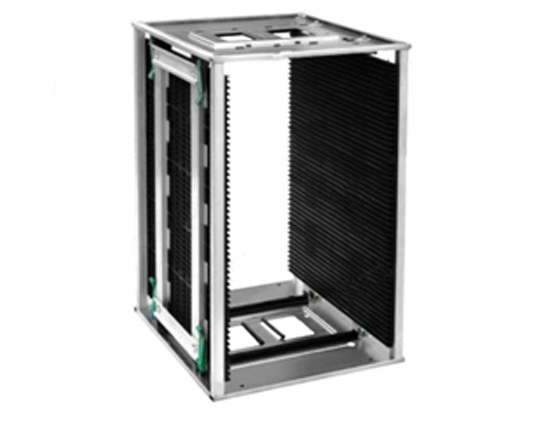

SC-803

Specifications - SC-803

  • Surface Resistance : 104 – 106Ω
  • Overall Size : 355 x 320 x 563mm
  • Suitable PCB Size : 350 x (50-250)mm
  • Adjustment : Gear adjustment
  • Adjustable Width : 50-250mm
  • Heat Resistance : 80℃ /120℃/200℃
  • Max Storage : 50pcs
  • Side Guide Slot : Depth 3.5mm, Width 5mm, Pitch 10mm
  • Base Material : Metal

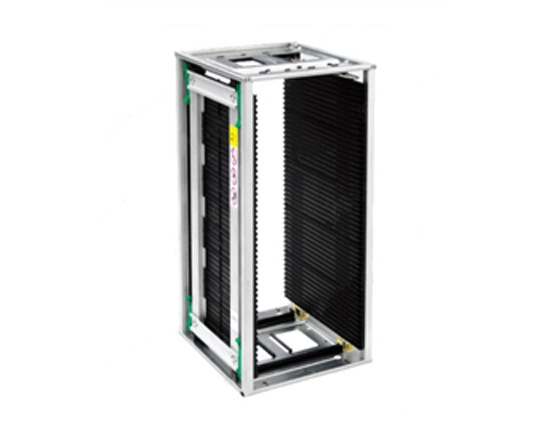

SC-806

Specifications - SC-806

  • Surface Resistance : 104 – 106Ω
  • Overall Size : 460 x 400 x 563mm
  • Suitable PCB Size : 360 x (50-330)mm
  • Adjustment : Gear adjustment
  • Adjustable Width : 50-330mm
  • Heat Resistance : 80℃ /120℃/200℃
  • Max Storage : 50pcs
  • Side Guide Slot : Depth 3.5mm, Width 5mm, Pitch 10mm
  • Base Material : Metal
