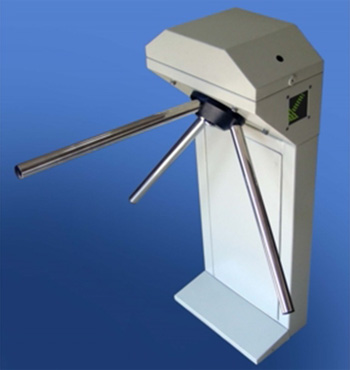

Slim Tripod Turnstile Model - RB-10S3
Features
- Solenoid locking mechanism
- 3 X 120 degree stop
- Bi-directional operational Control
- Self centring mechanism with hydraulic damping
- Positive action lock to prevent two passage at one time.
- Integration: With all type of access control panel/Reader available in the market.
- Casework available in Stainless Steel (RB-10S) with stainless steel arms
- 380 OR 500 mm Walkway (Standard is 380 mm)
Specifications
- Reader Mounting Place : 100 mm X 250mm +/-10%
- Power : 230 VAC Single phase @50Hz Dimension of Case work 420 X 250 X 1030 MM +/-10%
- Current : 0.5 A Typical Walk way 380 mm or 500 mm
- Power Consumption : Less than 40 Watt Material of case work stainless Steel
- Duty Cycle : 100% Material of tripod arm Stainless steel
- Lane Indicator Built-in (Green/Red) : Tripod Hub Index Mild Steel powder coated
- Weight : 48 KG Internal components Rust free alloy of high strength
- Standard colour : Siemens grey
- Integration : Two PFC required (Entry and Exit)
- Application : Indoor / Outdoor (under shed/Canopy) Installation By anchor Bolt on plain surface
- Temperature : 5 to 55 degree C
- Locking Mechanism : Solenoid
- Humidity : 90% Non-condensing Intelligence Built-in logic control
